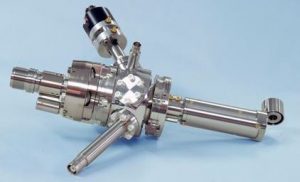

EGG-3101 / EGPS-3101电子枪 轰击型电子枪 kimball电子枪 肯博尔电子枪
Energy Range 能量范围: 100 eV to 10 keV
Beam current / Spot size: 束流范围 / 光斑大小
Standard 标准: 10 nA to 100 µA / Standard: 0.5 mm to 25 mm
Small Spot option 小光斑选项: 1 nA to 10 µA / 60 µm to 10 mm
High Current option 高束流选项: 1 µA to 1 mA / High Current option: 1.5 mm to 25 mm
Mounting 安装法兰: 2¾CF
Features/Options 选配: Beam Alignment Adjustable while Operating, Collimated Beam, Electrostatic Focusing and Deflection, Blanking, Pulsing, Rastering, Mounted Pneumatic Faraday Cup
